Motor Platforms
M

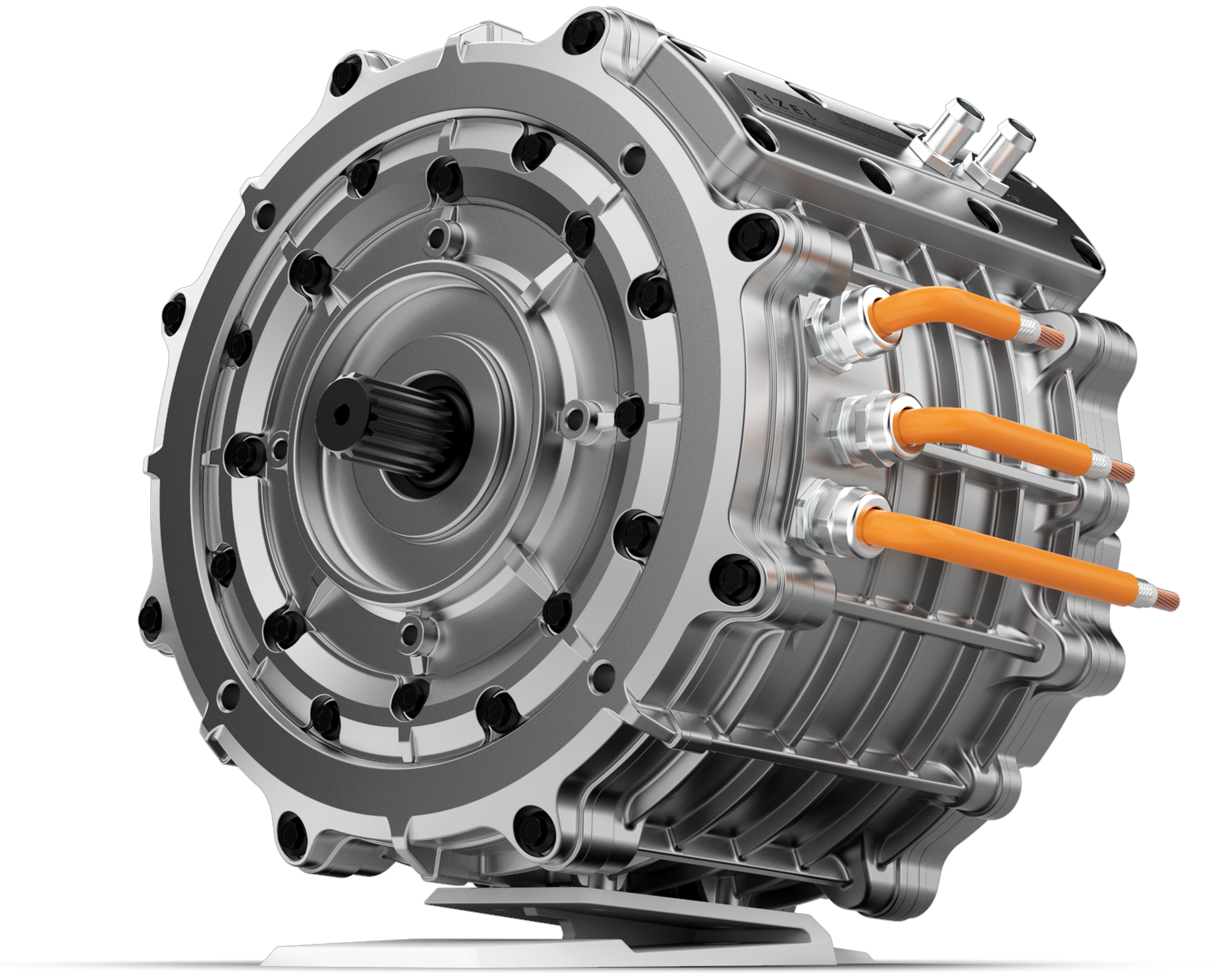

Hybrid SynR-PM Motor for power ranges between 50-150kW of Power. Tailored for optimum use in Passenger Vehicles and commercial vehicles.
M80 - 100kW variant of our Platform M
Power
100kW
Speed
12,000rpm
Weight
29kgs
Torque
250Nm
Peak Efficiency
96%
-
Innovative cooling system. [Patent pending]
High “Magnet weight to torque ratio”.
Active power density of > 6 kW/kg
Active torque density of > 14 Nm/kg
Peak efficiency > 96%
Highly scalable architecture
Low rotor inertia
F

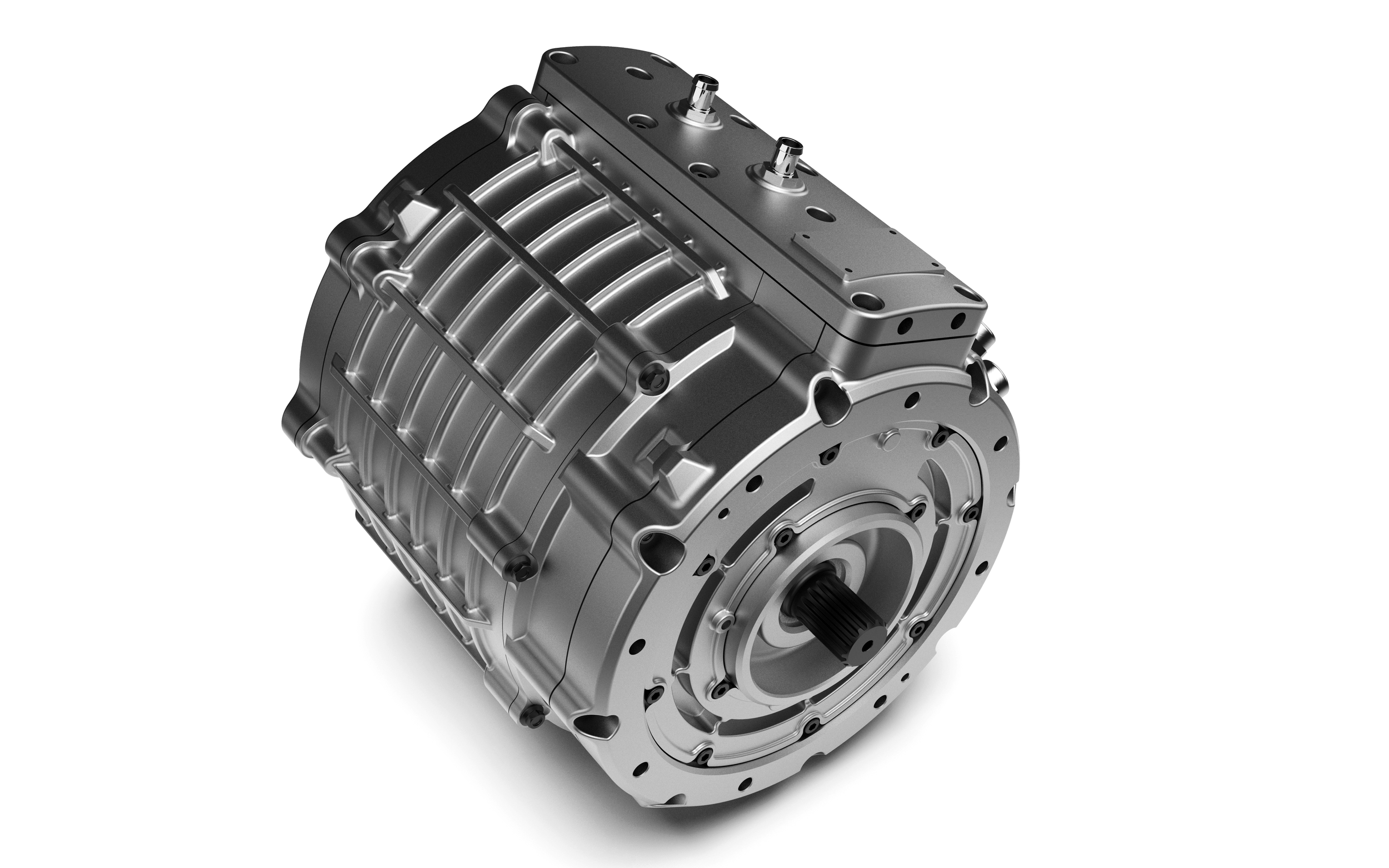

Hybrid SynR-PM Motor for power ranges of 150kW+ Power. Tailored for optimum use in off highway applications
ZM-F2L1-40 - 40kW variant of our Platform H
Power
80kW
Speed
6,500rpm
Weight
29kgs
Torque
200Nm
Peak Efficiency
96%
-
Innovative cooling system. [Patent pending]
High “Magnet weight to torque ratio”.
Active power density of > 4.5 kW/kg
Active torque density of > 11.2 Nm/kg
Peak efficiency > 96%
Highly scalable architecture
Low rotor inertia
L
Hybrid SynR-PM Motor for power ranges between 5-25kW of Power. Tailored for optimum use in Three Wheelers.
ZM-L2A1-15 - 15kW variant of our Platform L
Power
18kW
Speed
6,500rpm
Weight
15kgs
Torque
90Nm
Peak Efficiency
96%
-
Innovative cooling system. [Patent pending]
High “Magnet weight to torque ratio”.
Active power density of > 2 kW/kg
Active torque density of > 6 Nm/kg
Peak efficiency > 96%
Highly scalable architecture
Low rotor inertia
Hybrid SynR-PM Motor for power ranges between 3-25kW of Power. Tailored for optimum use in Two Wheelers.
T
-
Innovative cooling system. [Patent pending]
High “Magnet weight to torque ratio”.
Active power density of > 2 kW/kg
Active torque density of > 6 Nm/kg
Peak efficiency > 96%
Highly scalable architecture
Low rotor inertia
ZM-T2A1-7 - 7kW variant of our Platform M
Power
9kW
Speed
6500rpm
Weight
8.5kgs
Torque
30Nm
Peak Efficiency
96%
